DACELL Co., Ltd. is highly specialized in providing various weighing and measuring load cell products based on its proprietary technology accumulated for 20 years of experience.
DACELL Indicator devices that can be connected to various sensors and transducers display measured values digitally and output signals in real time for control and monitoring of measuring systems.

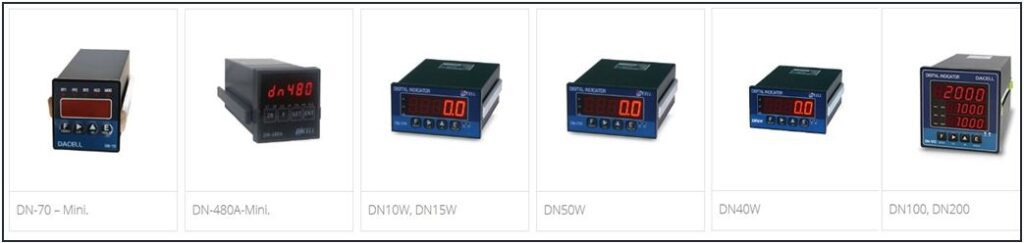

DACELL Digital Indicator DN-70–Mini
It is a Miniature indicator equipped with Modbus Protocol Basic Installations.
- Available sensor: Load cell, torque sensor, etc.,
- Simple and quick using four push buttons only
- High resolving power of 24bit A/D
- Quick sampling speed of 100 times/sec
- Watchdog timer
- Small size of 48*48*128mm and Cutting size of5*45.5mm
- Weight about 280g
- Power Input 24V
- Option OP-03: RS485 and OP-06: Analog out (DAC)
DACELL Digital Indicator DN-480A-Mini
- Isolation from the external noise
- Watchdog function
- Display resolution up to 1/20,000
- 2pcs Digital input terminal built in (Zero, Tare/Reset)
- DC 24V power supply without Polarity
- Data back-up function
- Full Automatic Calibration method, Simulating Calibration Method without Span weight
- Option Rs-422 / Rs-485 Rs-232 (extra) / 4~20mA or 0~10V output
- Small size of 48*48*118mm
DACELL Digital Indicator DN10W and DN15W
DN10W and DN15W are designed specifically to operate with strain gauge sensors such as Fast-measurement of the Load cell, Pressure Transducer, LVDT, etc. The setup sequence is simple and quick using four push buttons only.
- High resolving power of 16bit A/D
- High precision more than 0.012% F.S. and stability
- Quick sampling speed of 100 times/sec
- Built-in Shunt calibration switch
- Watchdog timer
- Small size of 96*48*128mm / Cutting size of 92*45mm
- Weight about 700g,
- Option Power Input 24V in accordance with customer request
DACELL Digital Indicator DN50W
DN50W is designed specifically to operate with strain gauge sensors such as Fast–measurement of Loadcell, Pressure Transducer, LVDT, etc. The setup sequence is simple and quick using four push buttons only.
- Comparison output is available
- Sampling speed of 1000 times Per Second
- Option Power Input 24V in accordance with customer request
DACELL Digital Indicator DN40W
DN400W is designed specifically to operate with strain gauge sensors such as Fast–measurement of Loadcell, Pressure Transducer, LVDT, etc.
- Option Power Input 24V in accordance with customer request
DACELL Digital Indicator DN100 and DN200
DN-100 and DN200 are designed specifically to operate with strain gauge sensors such as Fast– measurement of Loadcell, Torquemeters, Pressure Transducer, LVDT, etc.
- DN100: sampling speed of 5000 Times per Second
DN200: sampling speed of 1000Times per Second
