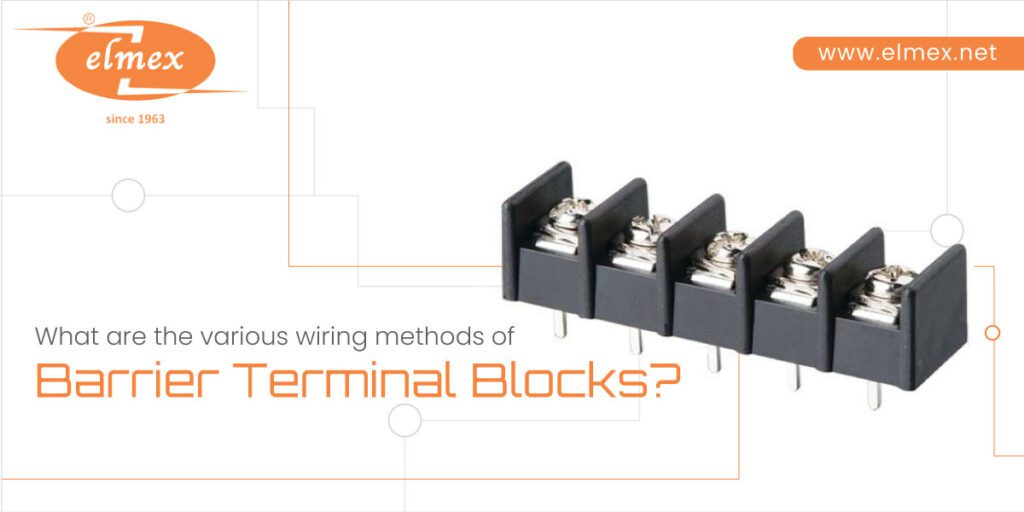

The “America”, as well as “Japanese” terminal blocks, are also widely popular as barrier terminal blocks. Because the majority of the series’ products are black, they’re also known as black terminal blocks. Barrier strip connectors are interconnected devices with a simple structure that consists mostly of short metal strips separated by a raised insulated “barrier,” connectors or screws that allow for wire termination and connection, and welding feet. The real functioning is more convenient, robust, and trustworthy using barrier terminal blocks, which are available in panel mount types.
Elmex Controls Pvt. Ltd. is the most prominent as well as noted barrier terminal block manufacturer in India.
Wiring Methods:
● Welding:
Soldering is the most prevalent method of welding. The most crucial aspect of a solder connection is that the metal should be continuous between the solder substance and the soldered surface. As a result, solderability is critical for terminal blocks, particularly cold-pressed terminal blocks.
● Crimp:
Crimping is a method of attaching wires to contact pairs by squeezing and moving metal within specified limitations. A proper crimp connection can create a mutual melting flow of metal, causing the wire and contact to symmetrically distort the material. This connection is comparable to cold welding, but it has better mechanical strength and electrical continuity, as well as the ability to tolerate harsher environmental conditions.
If you are looking for one of the most popular and trustworthy barrier terminal block manufacturers in Vadodara, Gujarat, Elmex Controls Pvt. Ltd. is the best pick for you.
● Winding:
Winding is the process of winding the wire directly on the angular contact’s winding post. The wire is wound under tension, squeezed in, and fastened at the corners of the contact’s winding post to produce an airtight contact during the winding process.
● Puncture connection:
Insulation displacement connection, sometimes known as puncture connection, is a revolutionary terminal technology developed by the United States in the 1960s. It boasts a high level of dependability, low cost, and convenience of usage. It’s commonly seen in cold-pressed ends, cold-pressed terminals, printed board terminals, as well as the ring terminal.
● Screw connection:
The screw connection is a type of connection that uses screw terminal blocks to provide for maximum and minimum cross-sections of connected wires as well as maximum tightening torque allowed by screws of various specifications.
Elmex Controls Pvt. Ltd. is an excellent as well as the most renowned supplier of terminal blocks in Vadodara.
Advantages:
- Maximum conductor pull-out forces
- Gas-tight contacting
- Reliable contacts
- Easy potential distribution
- Long-term contact stability
- Easy testing
- Vibration-resistant contacting
- Integrated touch proofness
- High-performance contacting
- Large surface marking
Applications:
Barrier terminal blocks are widely used in a variety of electronic and electrical industries, including motion control, frequency converter, instrumentation, motor, industrial control equipment, power equipment, programmable power supply, power supply, LED lamp lighting, security monitoring, sensor control board, injection moulding machine control, and so on, due to their simple, intuitive, and solid structure.
- Machine control
- Power supply
- Test and measurement
- Automation equipment
- Security/Alarm equipment
- HVAC control
- Garage door opener
- Furnace, water heater, boiler
- Industrial controls
- Instrumentation
- EDP equipment
